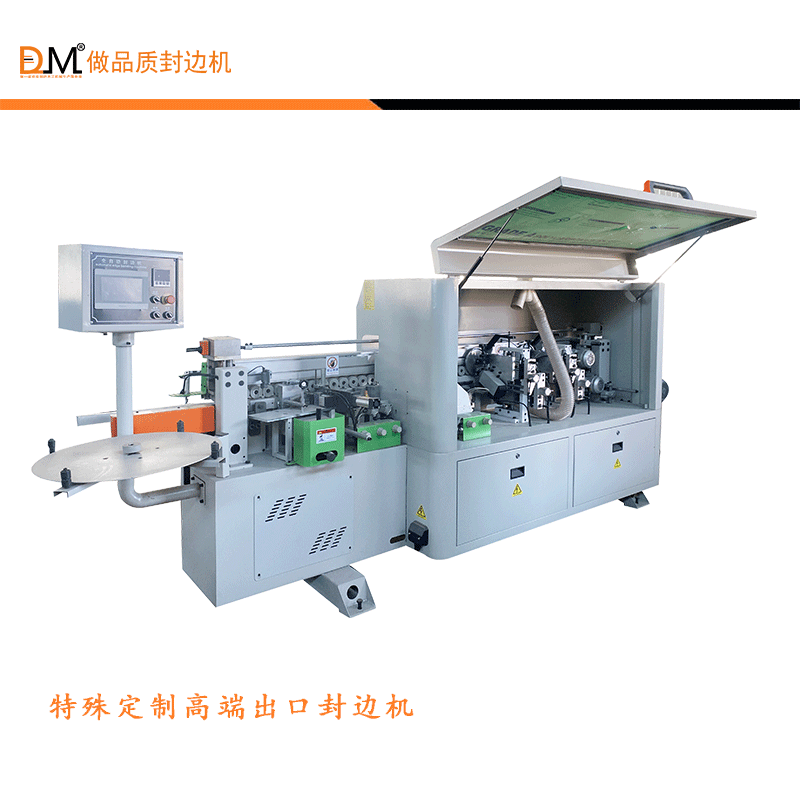

| DM-360A全自動封邊機 DM-360A fully automatic edge banding machine | |
| 項目 project | 參數 parameter |
| 板材厚度 Plate thickness | 8-60mm |
| 板材最小加工寬度 Minimum processing width of plate | ≥70mm |
| 板材最小加工長度 Minimum processing length of plate | ≥70mm |
| 封邊帶厚度 Thickness of edge band | 0.3-4mm |
| 電壓 Voltage | 380v/50hz |
| 工作氣壓 Working pressure | 0.6mpa |
| 機器尺寸 Machine size | 4700*900mm*1500mm |
| 進料速度 Feed rate | 18米-25米 |
| 總功率 Total power | 7kw |
| 拋光電機 Polishing motor | 0.18kw×2 |
| 板材預熱率 Plate preheating rate | 0.3kw |
| 設備尺寸 overall Dimensions | 3200*700*1300 |
| Functions: touch screen control panel, gluing, pressing, front and rear trimming, rough trimming, finishing, scraping, polishing | |
 |  |
 |  |
